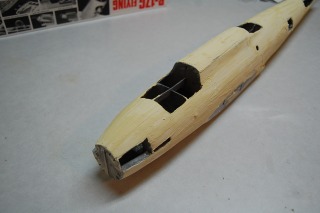

| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:23 |  | | Views : 4054 | | 3D designed and printed the nose cone. Big holes for four 20MM cannons to stick out of. Lots of punch for a mid-1930’s British aircraft design! |
| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:21 |  | | Views : 4060 | | Here is the tailwheel, which also retracts. Much simpler process here. Simple horizontal pivot. Wheel and yoke assemble was created in 3D and printed using my FDM 3D printer. |
|
| Hangar |
Aircraft |
Category |
Date |
Preview |
| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:21 |  | | Views : 738 | | Gear fully retracted in the Nacelle. Looking down into the top of the nacelle. |
| edtherenderman | Cleveland Westland Whirlwind | Build | 30-Mar-22 11:20 |  | | Views : 681 | | Gear doors closed. Doors where created using the piece cut out of the nacelle as a buck, then vacuum formed styrene over the buck. The styrene was supper thin and flexible, so I built up the insides with many layers of tissue and EZ-Dope. The outsides where filled with spackling compound, sounded, tissued, doped and painted with sanding primer. I still need to add small magnets to keep the doors together when closed. |
|
