Hangar	Aircraft	Category	Date	Preview
jerry campbell	Dave Diels Engineering, Inc Kit #43, Ki 84 Hayate "Frank"	Build	15-Jun-07 15:17
Views : 1711

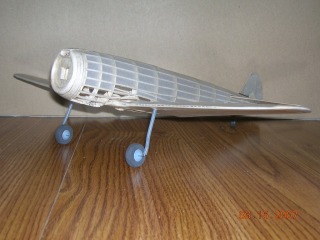

The sleek shape of the "Frank" is finally taking shape. The Hayate (Hurricane) in the hands of an experienced pilot could out fly both the Musttang and Hellcat.
jerry campbell	Dave Diels Engineering, Inc Kit #43, Ki 84 Hayate "Frank"	Build	15-Jun-07 15:09
Views : 1446
The engine cowling is built up with rings of balsa and was a bit of a job carvng and sanding to shape as well as cutting and shaping the air intake . You can see where the stringers must still be added to the fuselage.

Hangar	Aircraft	Category	Date	Preview
jerry campbell	Dave Diels Engineering, Inc Kit #43, Ki 84 Hayate "Frank"	Build	15-Jun-07 14:57
Views : 1398
The major components are doped, sanded, and papered. The lower third of the fuselage will be papered after the wing has been added to the fuslelage and the l ower stringers are in place.
jernst	Dave Diels Engineering, Inc Kit #39, Aichi D3A1 "Val"	Parked	15-Jun-07 13:55
Views : 4686
Diels Aichi D3A1 'Val'; 24 in span - with major wing panel 'flexing' under tissue compression
