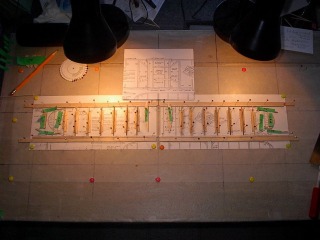

| LASTWOODSMAN | SIG Customaire # FF-26 | Parked | 14-Jul-17 09:16 |  | | Views : 742 | | The 3/32" sq LE is now braced up in position, with long straight planks. The ribs are now also braced up with the other side location planks, that are pinned to the table on the other side of the ribs. The ribs were then slid forward up against the LE, and the rear 3/32" X 3/16" TE was then slid up snug to the rear of the ribs, and the TE is also braced up with a long plank pinned to the table, insuring a snug, flush slip fit to the back of the ribs. All of these laser cut ribs fit perfectly! |

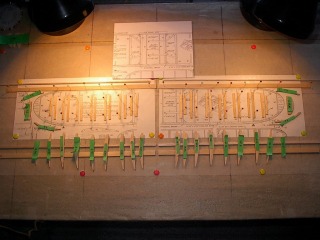

| LASTWOODSMAN | SIG Customaire # FF-26 | Parked | 14-Jul-17 09:14 |  | | Views : 770 | | MAIN WING ASSEMBLY - The parts, and the 3/32" square Leading Edge (LE) and the 3/32" X 3/16" Trailing Edge (TE), are now laid out, for the right and left wing sections. The bracing planks, for one side of the ribs, are now pinned to the building board to hold the ribs in position. |
|
|
