LASTWOODSMANScratch Built Curtiss PusherParked04-Feb-17 13:15
Views : 795

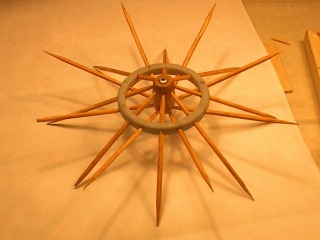

16 wooden spoke assymetrical "Dish" wheel.
LASTWOODSMANScratch Built Curtiss PusherParked04-Feb-17 13:11
Views : 793

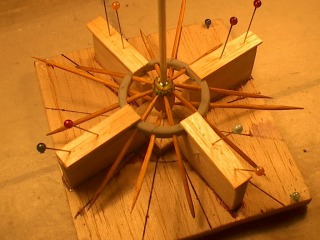

Notice the "longer" shinny spacer sleeve, on the bottom of the axle of the wheel jig (right side of pic), used in order to make the "Shallower" dish of the wheel.
Hangar Aircraft Category Date Preview
LASTWOODSMANScratch Built Curtiss PusherParked04-Feb-17 13:06
Views : 769
All spokes are now in and glued with tiny drops of super thin CA glue.
LASTWOODSMANScratch Built Curtiss PusherParked04-Feb-17 13:04
Views : 829
This is the other "Shallower Dish" side of the wheel - spokes being added - so many spokes close together is causing interference with the four wheel rim mounts of the jig.
