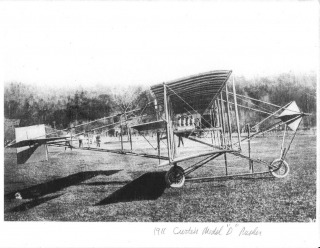

| LASTWOODSMAN | Scratch Built Curtiss Pusher | Parked | 23-Jan-17 11:02 |  | | Views : 852 | | Another pic of the Curtiss Model "D" Pusher. |

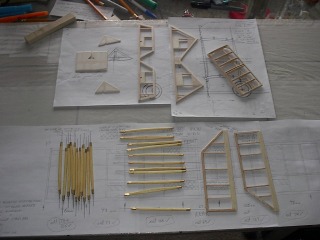

| LASTWOODSMAN | Scratch Built Curtiss Pusher | Parked | 23-Jan-17 10:58 |  | | Views : 813 | | Other components completed - Canard Foreplane wing, two triangular fins for the canard, Rudder, Stabilizer, Elevator, and two Ailerons. The Wing Struts all have a 0.015" piano wire sticking out from both ends. |
|
| Hangar |
Aircraft |
Category |
Date |
Preview |
| LASTWOODSMAN | Scratch Built Curtiss Pusher | Parked | 23-Jan-17 10:46 |  | | Views : 771 | | Here is a pic of Curtiss showing his shoulder cradle frame which was hinged at the bottom, allowing him to "push/lean" left or right with his shoulders, to push or pull the aileron control wires attached near the top of the cradle. |

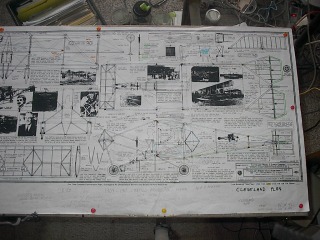

| LASTWOODSMAN | Scratch Built Curtiss Pusher | Parked | 23-Jan-17 10:41 |  | | Views : 878 | | This is the right hand side of the big "Cleveland" plan. There are no Rudder pedals in this version, only a Rudder Tiller that works off of control wires attached to the control column stick. It also shows details of the "Shoulder Cradle" yoke harness that controled the interplane Ailerons positioned between the wings, and Curtiss' ingenious method of contol wires and pulleys connecting to the Aileron control horn drive arms. |
|
