Skyediamonds1985Guillows Series 200 - SE5aBuild05-Oct-16 00:30
Views : 1323

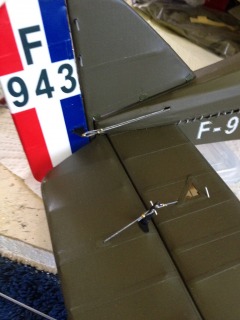

Top side. Notice the double rigging for the rudder. This explains the three cables to each side of the rudder bar. To the more astute observers, I added brass tubing to the underside of the fin to give it some space between the bottom of the vertical fin and the top of the fuselage as on the real aircraft.
Skyediamonds1985Guillows Series 200 - SE5aBuild05-Oct-16 00:27
Views : 1365

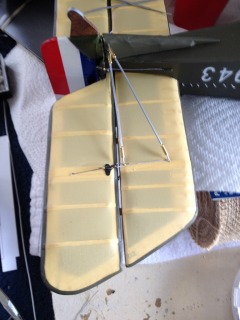

End result with tail skid and rigging installed. The tail skid had its own control cables. This is part of the reason why I added thee control cables to each side of the rudder bar
Hangar Aircraft Category Date Preview
Skyediamonds1985Guillows Series 200 - SE5aBuild05-Oct-16 00:25
Views : 1401

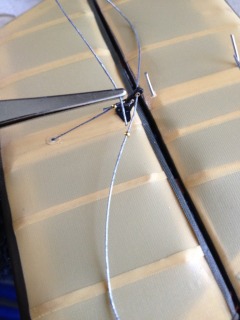

Starting on the double-looping to the forward portion of the control horn.
Skyediamonds1985Guillows Series 200 - SE5aBuild05-Oct-16 00:24
Views : 1354

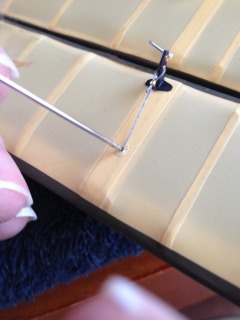

Added a small patch of Solartex covering and then made a small hole and super-glued the end.
