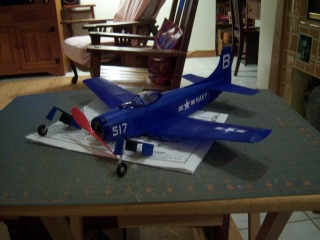

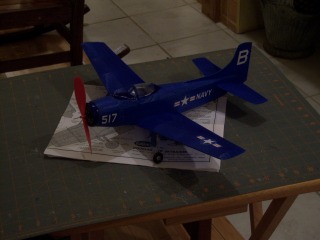

| hjlittman | Guillows Series 900 - Skyraider | Parked | 27-Nov-12 19:58 |  | | Views : 1049 | | I'm flying it "gear up" but wanted landing gear for display. I made some detachable "wheel wells" that are held on with rare earth magnets to a couple of small pieces of steel (cat food can lid) glued to the ribs under the covering. There is also a small piece of steel on the rear former to hold on the tailwheel and tailhook. The struts are wire wrapped with paper. They are not glued on to the "wheel wells" in the photo, but will be glued in after the back of the front strut covers and the struts have been painted. The square loops in the wires go around the magnets when they are glued in. Another piece of steel is under the middle of the fuselage for an intended Mk XIII torpedo. |

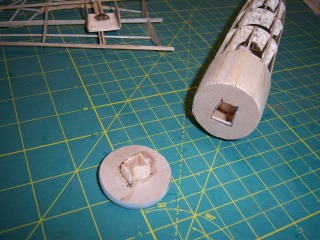

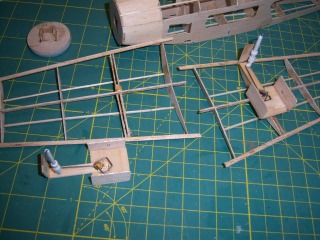

| hjlittman | Guillows Series 900 - Skyraider | Build | 27-Nov-12 19:58 |  | | Views : 1000 | | I did get a little farther along with the Skyraider. The nose block is finished with it's key. The flat plate nose block is a sandwich of 1/64" plywood, balsa and 1/64" plywood. The front of former 'A' is also faced with 1/64" plywood. Most people say this is unnecessary, but I have been flying my Typhoon, with a similar setup, for 8 years now. |
|
