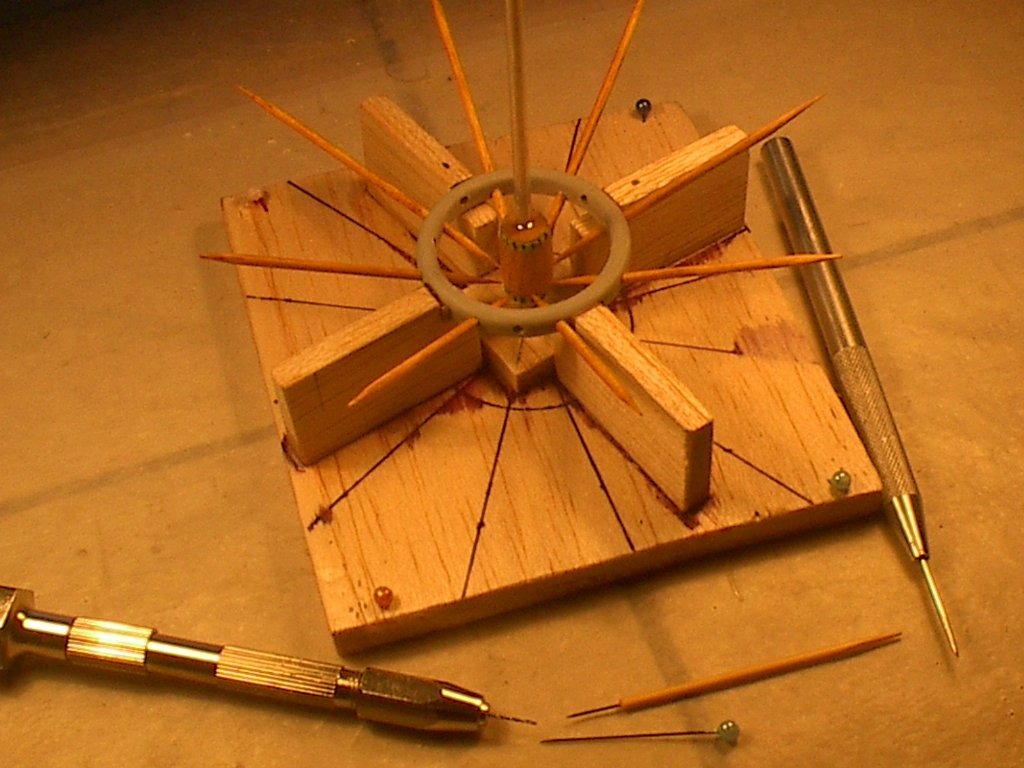

Scratch Built Curtiss Pusher by LASTWOODSMAN. Viewed 318 times. Build Thread Next Prev Click image to return. Image Comments LASTWOODSMAN 04-Feb-17 12:30 Checking the allignment of the spokes to the hub attach points. Since the wheel hub was soft balsa, I did not have to actually drill the tiny holes in the hub. I started the mortise holes in the hub with the point of a round head 0.023" dia. pin. I made a little tool to push the pin point into the hub for a starter hole. I cut off the tip of a spare toothpic, drilled a 0.025" hole with a #72 drill bit and pin vise, into the toothpic and cut off a piece of the tip of the round head pin, and CA glued it into the end of the toothpic (tool at bottom of pic). Please sign in to comment on this image.
