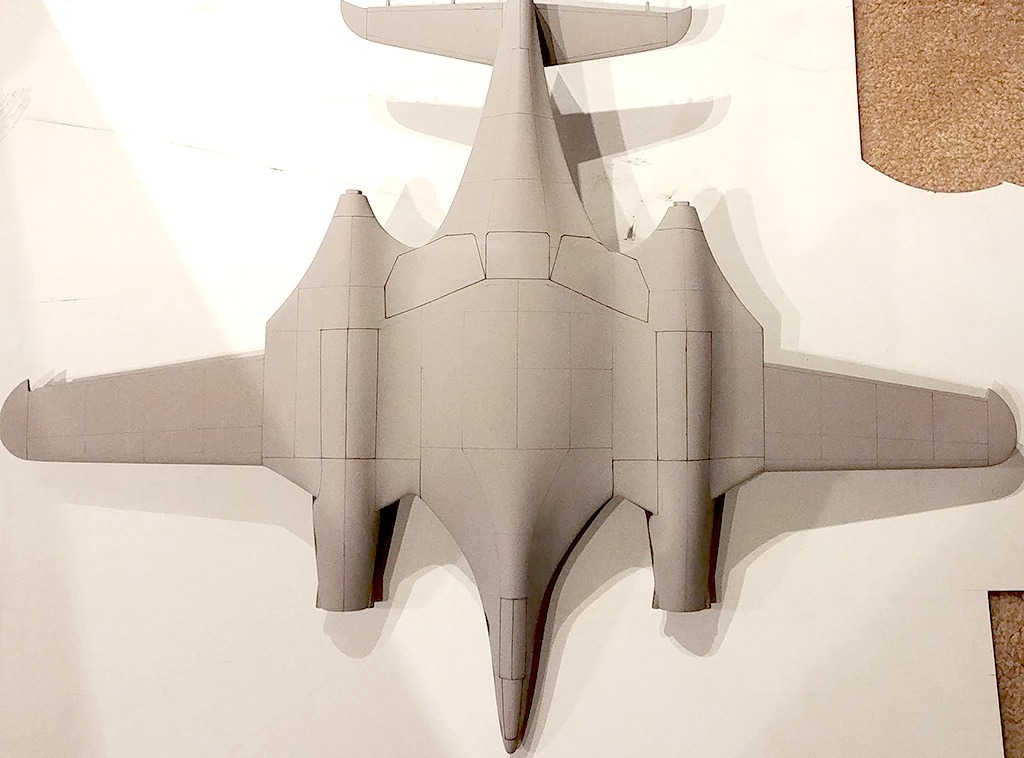

Scratch Built McDonnell XP-67 by edtherenderman. Viewed 314 times. Build Thread Next Prev Click image to return. Image Comments edtherenderman 28-Feb-21 20:16 Bottom is painted a gray primer. Started drawing in panel lines. Pretty close to do, but need a few details, like access panels. There are almost no reference pictures of the underside of this aircraft. Challenge with building a prototype aircraft where only two examples were built! So, a lot of guesswork here. Creosotewind 01-Mar-21 15:37 Very nice, subtle panel lines. I like it. Did you use pen or pencil? bobgood 01-Mar-21 15:58 This is really amazing work...... biplane guy 01-Mar-21 16:26 How do you get straight panel lines on curved surfaces? That's really good. edtherenderman 01-Mar-21 16:28 I use pens. For the lighter panel lines, I use COPIC Multi-Liner in Cool Gray, 0.3 and 0.5. The darker lines around the doors are COPIC Multi-Liner SP Black 0.3 and 0.5. The COPIC pens are nice because they are waterproof and dry very quickly. Once they are dry, you don't have to worry about smudging. edtherenderman 01-Mar-21 16:39 for drawing lines, I think I'm using Dave Duckett's technique, 0.01" polystyrene. Very flexible. For panels I need to repeat, I cut a template from the styrene and use calipers measuring from the center line to try to get as accurate placement as possible. biplane guy 01-Mar-21 17:44 Thanks Ed and Dave, I appreciate those tips. Please sign in to comment on this image.
