| BriandKilby, Comment for image # 718 | 26 Jul 10 05:51 | | i'm not an expert, but i think dumas wood is lighter, but not as strong as guillows. |
| pakasit1812, Comment for image # 718 | 26 Jul 10 02:39 | | James, we are grateful for your time and effort to keep this website enjoyable among all of us.
BTW, I am building a 37" span Antoinette 1907. This will
be the largest model my VW can cope with.
Thank you, James. |
| jgood, Comment for image # 718 | 25 Jul 10 14:41 | | Yes, much better wood than a standard die-cut Guillows kit, marlinus. Pak, it has a 36" wingspan, and I was planning on using an IPS motor. Unfortunately, it's still sitting pretty much as you see here! BTW, the site may be very slow tonight, I'm doing a big backup, and using lots of bandwidth to move the backup off the server. Thanks for your patience in advance! |
| pakasit1812, Comment for image # 718 | 25 Jul 10 02:54 | | What is the wingspan and motor James? |
| marlinus64, Comment for image # 718 | 24 Jul 10 17:06 | | The wood in this kit looks fantastic. Is the laser cut wood in a Dumas kit really that much better than a die cut Guillows? i have only sen or worked with Guillow's kits so i have no way to draw my own conclusions at this point. |
| sweetwillie, Comment for image # 483 | 07 Feb 08 21:47 | | Lookin good!! |

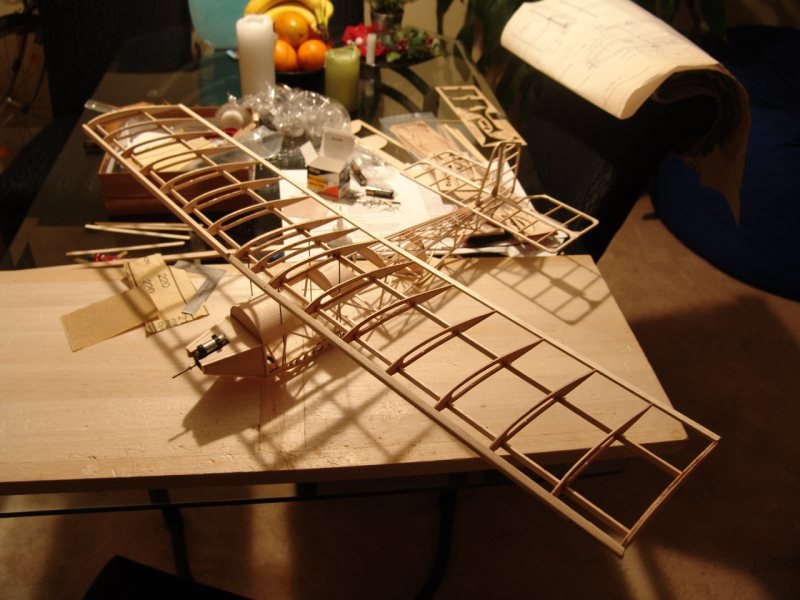

| jgood, Image # 718 | 04 Jun 05 23:35 |
Wing not attached. Lots of leading edge shaping to be done. |
| jgood, Image # 506 | 13 Apr 05 09:59 |
Tail feathers built. |

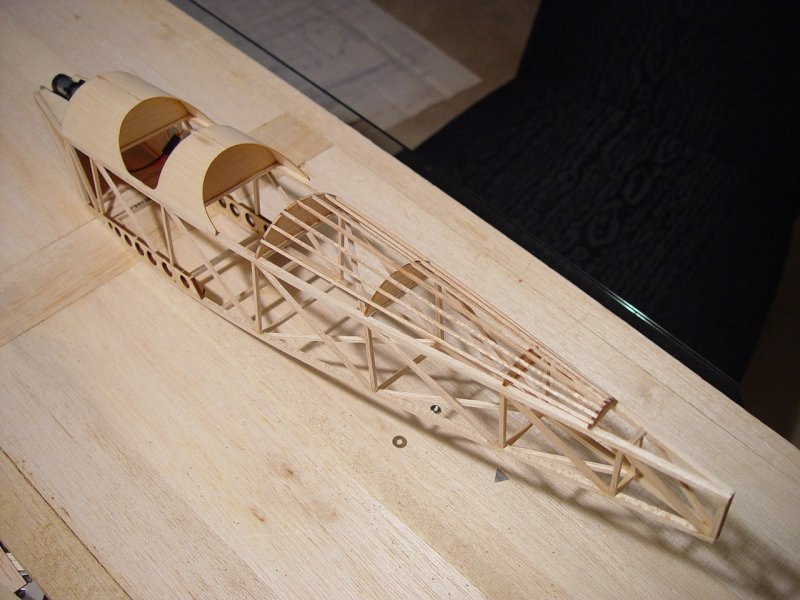

| jgood, Image # 497 | 10 Apr 05 19:58 |
Top decking, still needing some final sanding. |

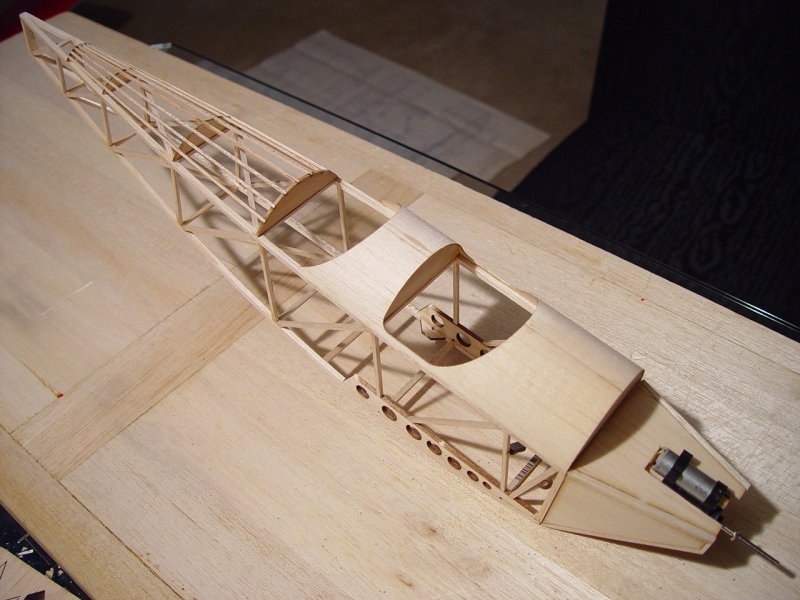

| jgood, Image # 496 | 10 Apr 05 19:57 |
Top decking now installed. |

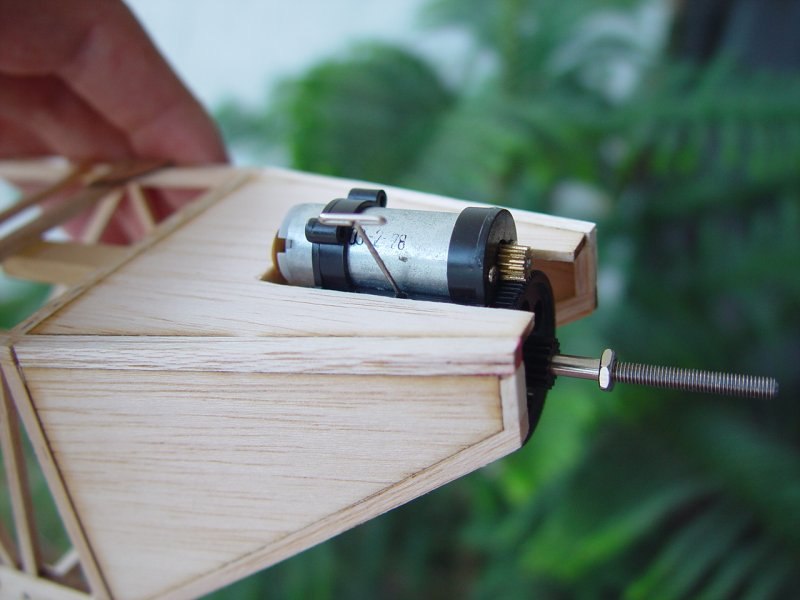

| jgood, Image # 495 | 10 Apr 05 19:02 |
Motor mount. Motor mount stick has been sanded down so the motor is easy to slide off. It secures in with a locking pin. |

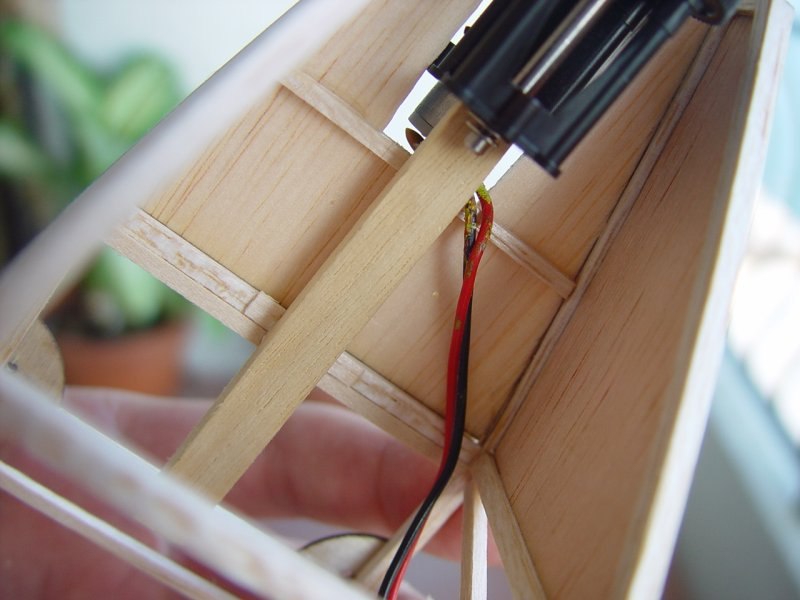

| jgood, Image # 494 | 10 Apr 05 19:02 |
Motor mount. |

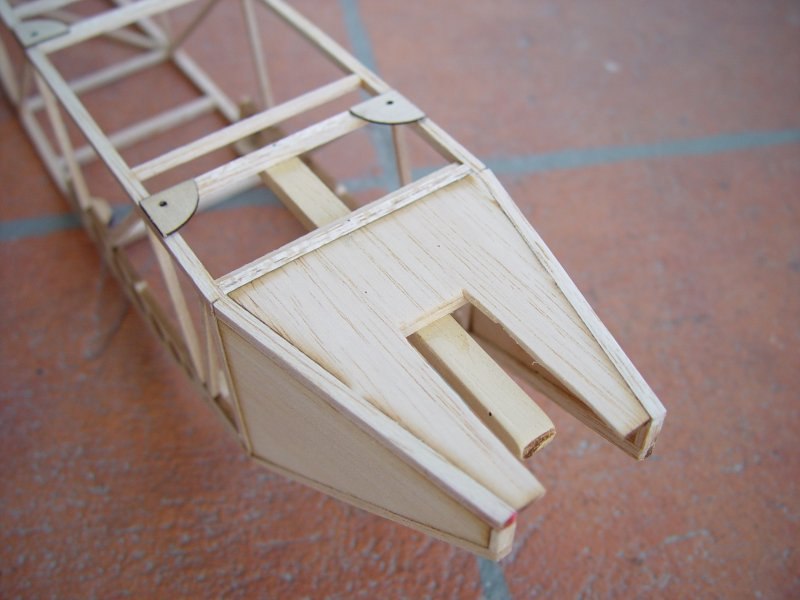

| jgood, Image # 493 | 10 Apr 05 19:00 |
Motor mount installed. |

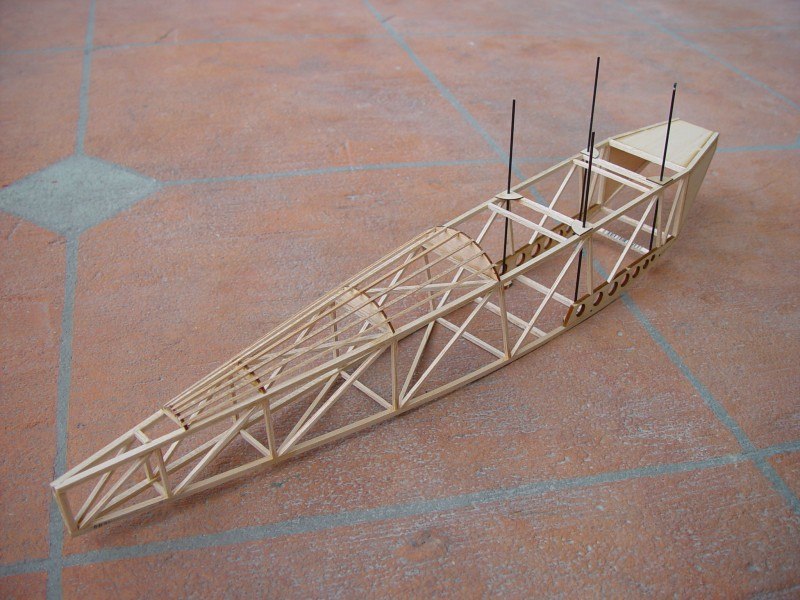

| jgood, Image # 492 | 09 Apr 05 17:59 |
New turtle decking and carbon fiber center section struts. |

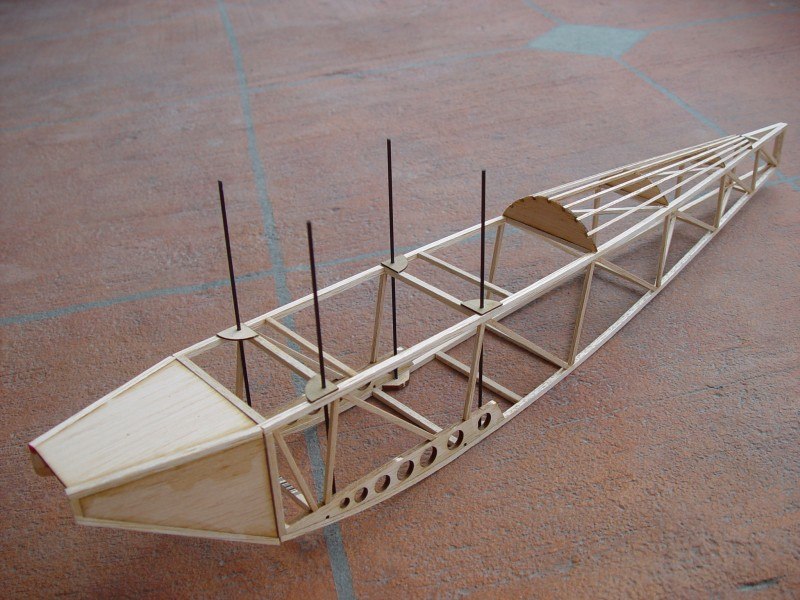

| jgood, Image # 491 | 09 Apr 05 17:58 |
Turtle decking & center section struts now installed. |

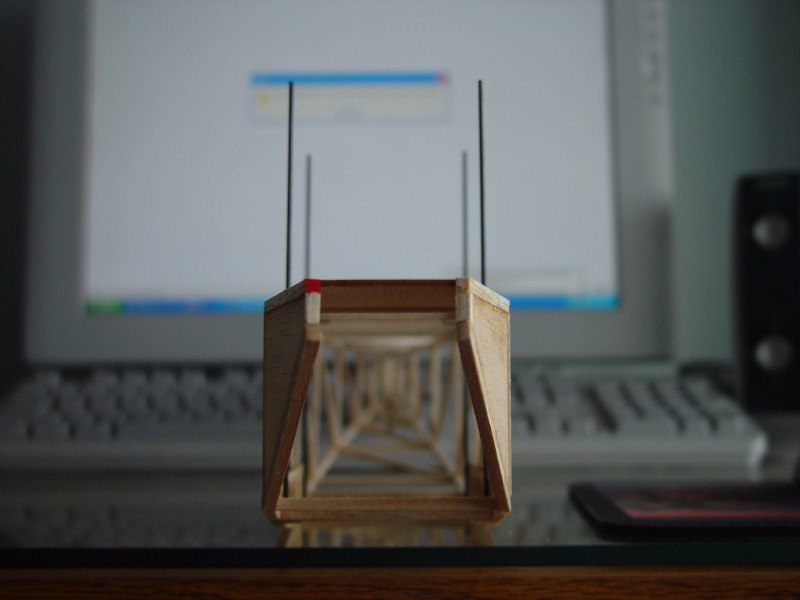

| jgood, Image # 490 | 09 Apr 05 17:54 |
Checking everything lines up from the front. |

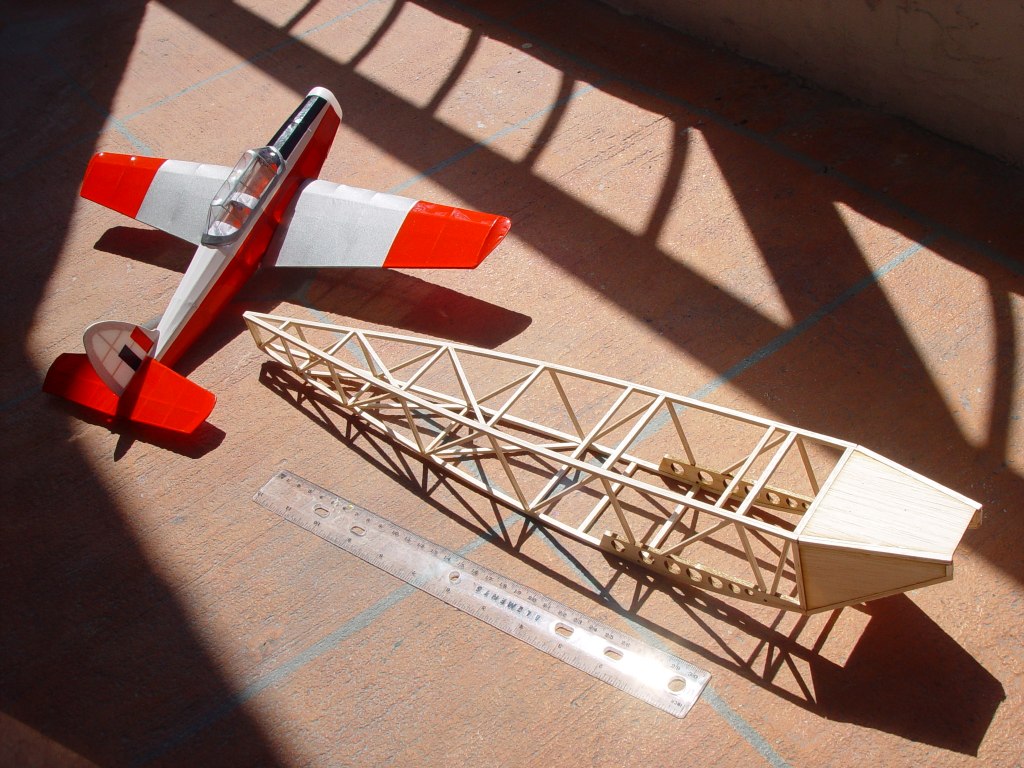

| jgood, Image # 485 | 09 Apr 05 11:27 |
Fuselage next to a 17" Guillows Chipmunk for size comparison. |

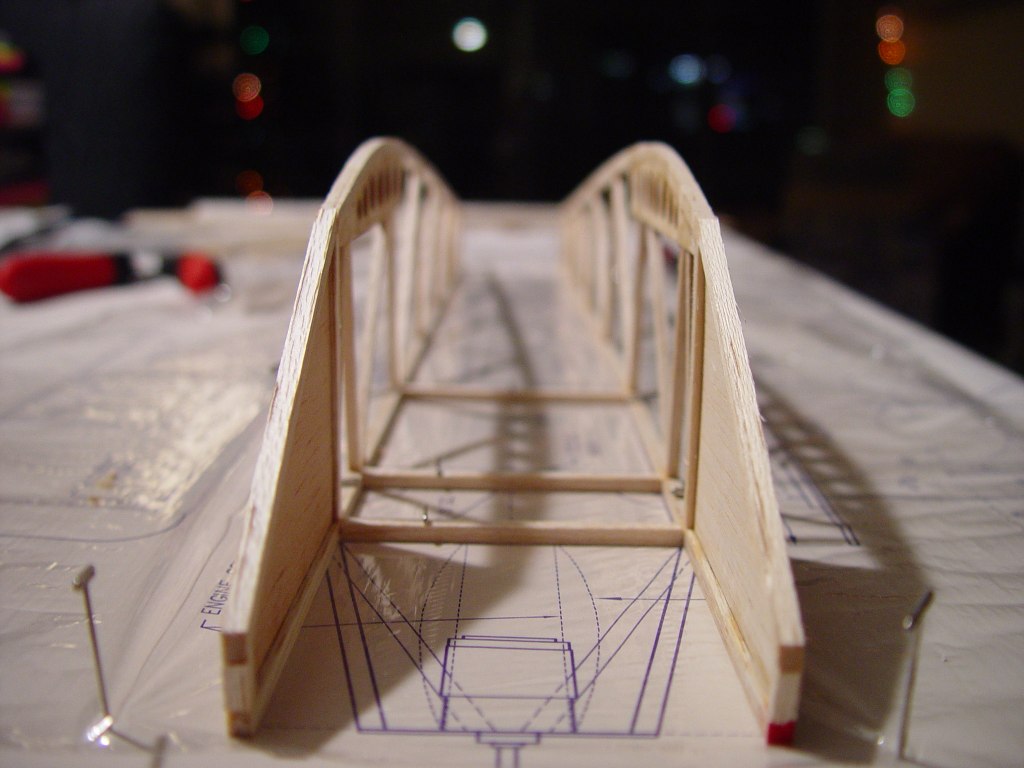

| jgood, Image # 484 | 09 Apr 05 09:16 |
Checking that everything is looking straight and true. |

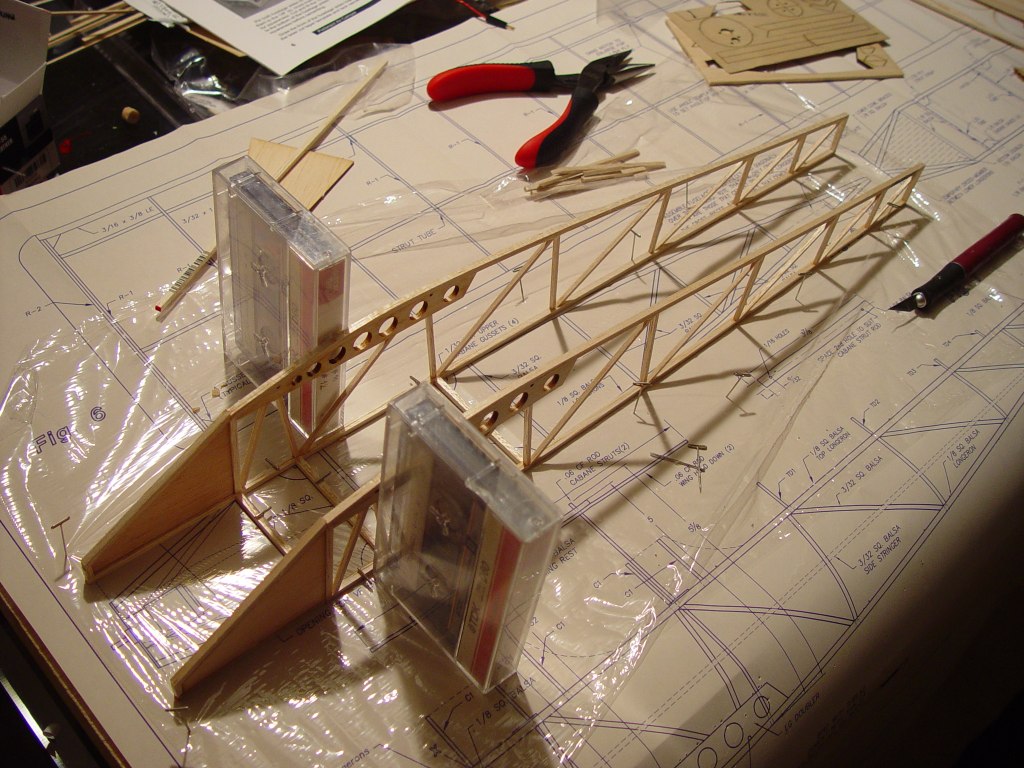

| jgood, Image # 483 | 09 Apr 05 09:11 |
Joining the fuselage sides, tape cassette boxes for 90 degree alignment. |

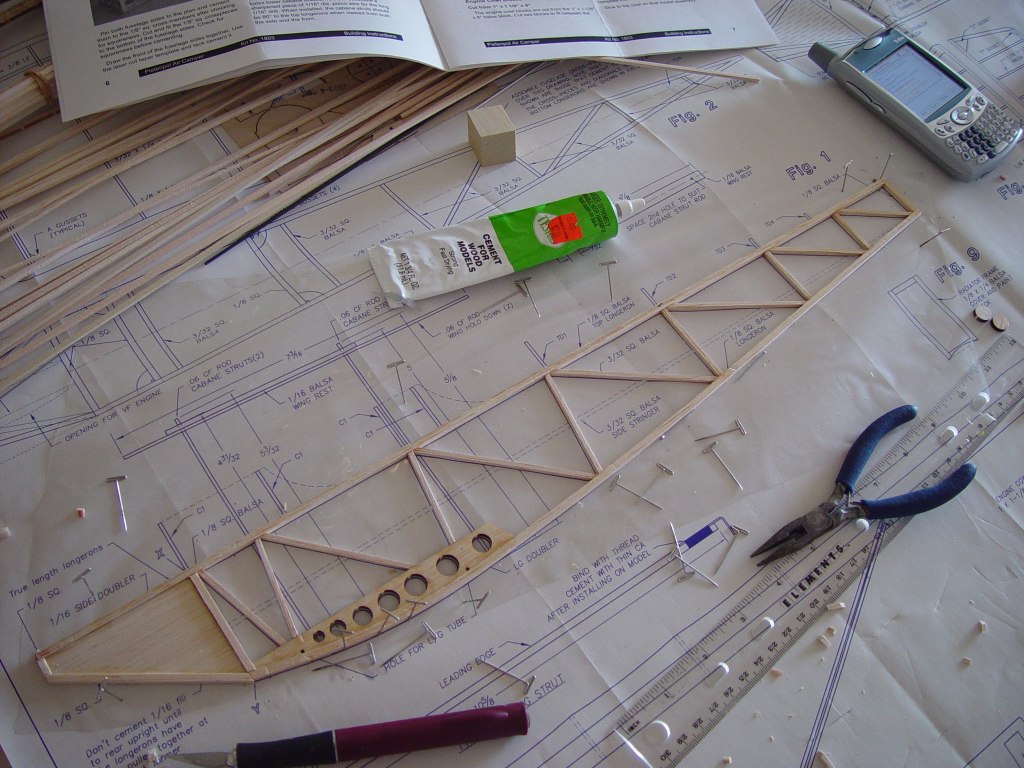

| jgood, Image # 482 | 09 Apr 05 09:02 |
Framing of the fuselage side. |
