RTD89, Comment for image # 2682 | 17 Jan 12 06:27 |
I did the exact same thing with mine. |
David Duckett, Comment for image # 2682 | 17 Jan 12 05:50 |
Click the "prev" button. |
Uncle benz, Comment for image # 2682 | 17 Jan 12 02:28 |
Where do you find this prop ?
|
Xanadu, Comment for image # 2681 | 10 Apr 07 20:24 |
Yup |
lennyz, Comment for image # 2678 | 10 Apr 07 13:53 |
thanks---it took some fiddling around-found that using a piece of wire to keep the centerlines in line helped |
lennyz, Comment for image # 2681 | 10 Apr 07 13:51 |
Are you talking about the prop? |
Xanadu, Comment for image # 2681 | 10 Apr 07 00:20 |
Good job! You cannot even see the joints where the 2 are joined. |
David Duckett, Comment for image # 2678 | 09 Apr 07 22:04 |
Very well done! |

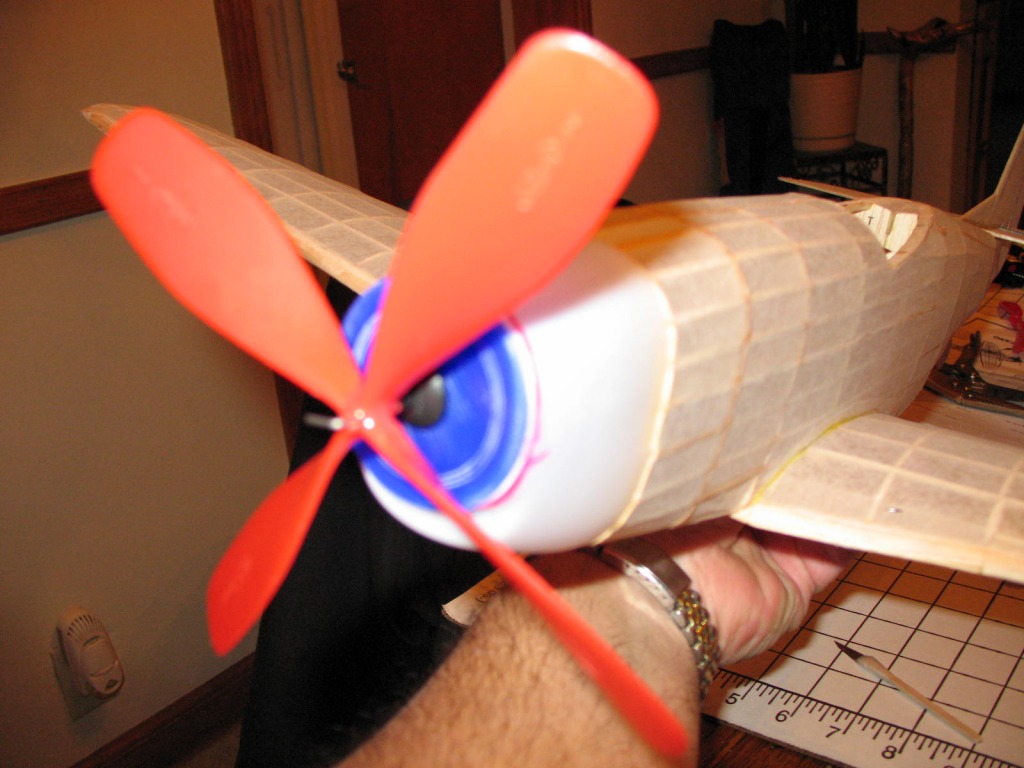

lennyz, Image # 2682 | 09 Apr 07 21:49 |
noseblock installed |

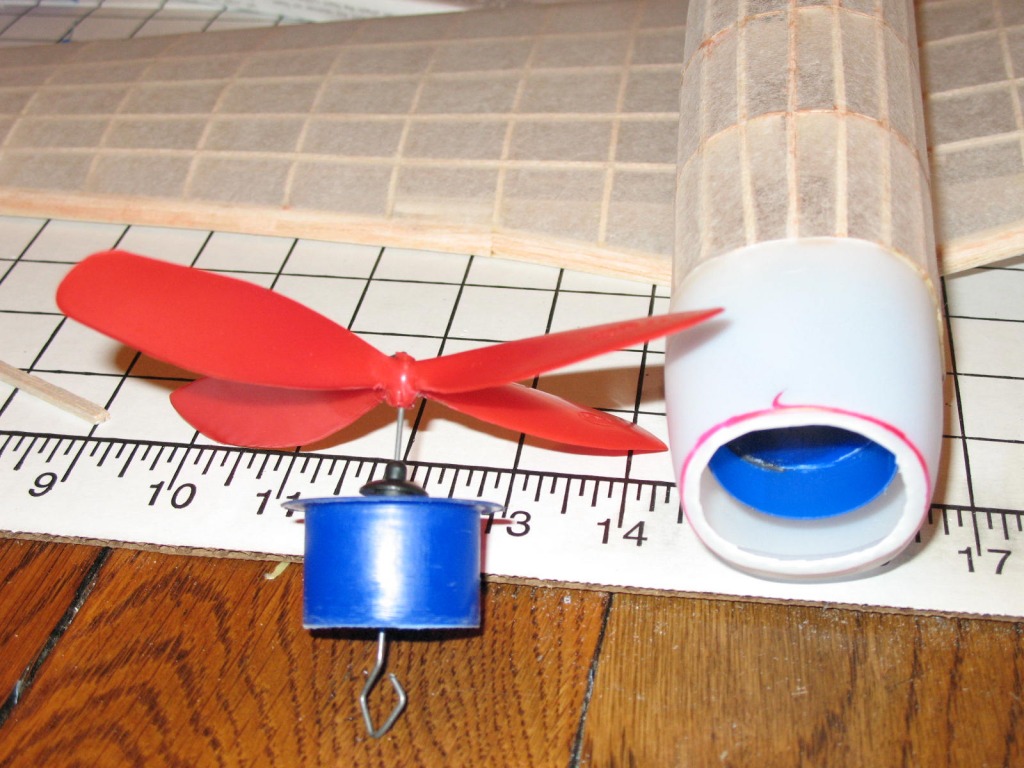

lennyz, Image # 2681 | 09 Apr 07 21:48 |
both halves of noseblock |

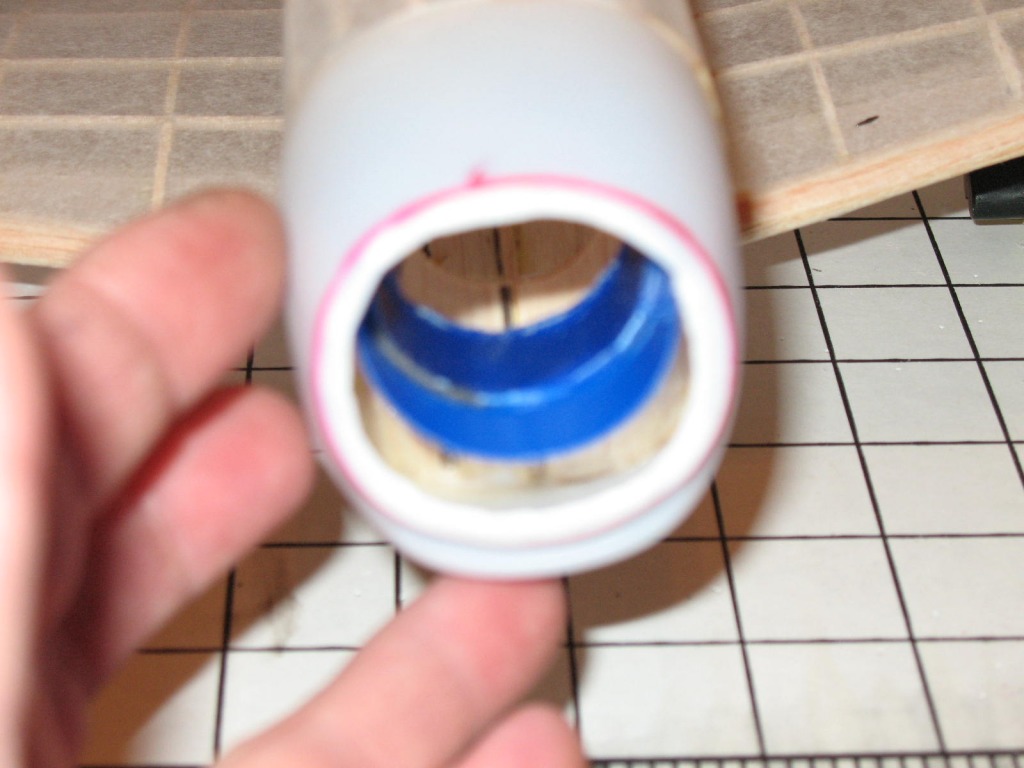

lennyz, Image # 2680 | 09 Apr 07 21:47 |
1/2 OF NOSEBLOCK INSTALLED |

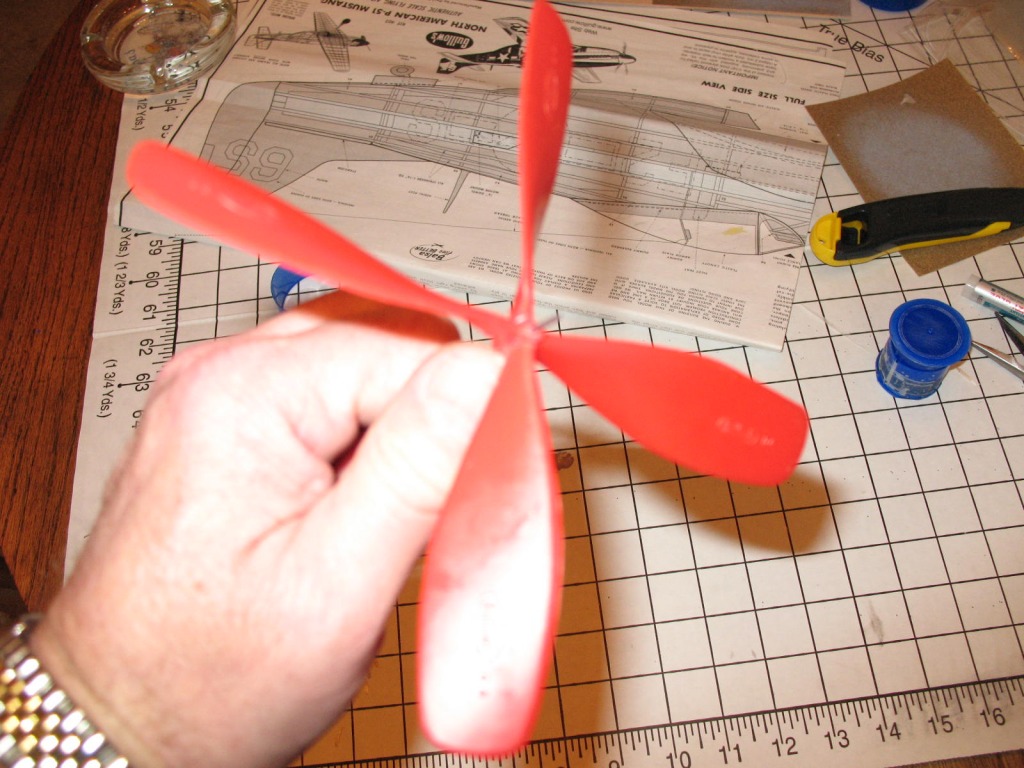

lennyz, Image # 2679 | 09 Apr 07 21:46 |
2 5" GUILLOWS PROPS |

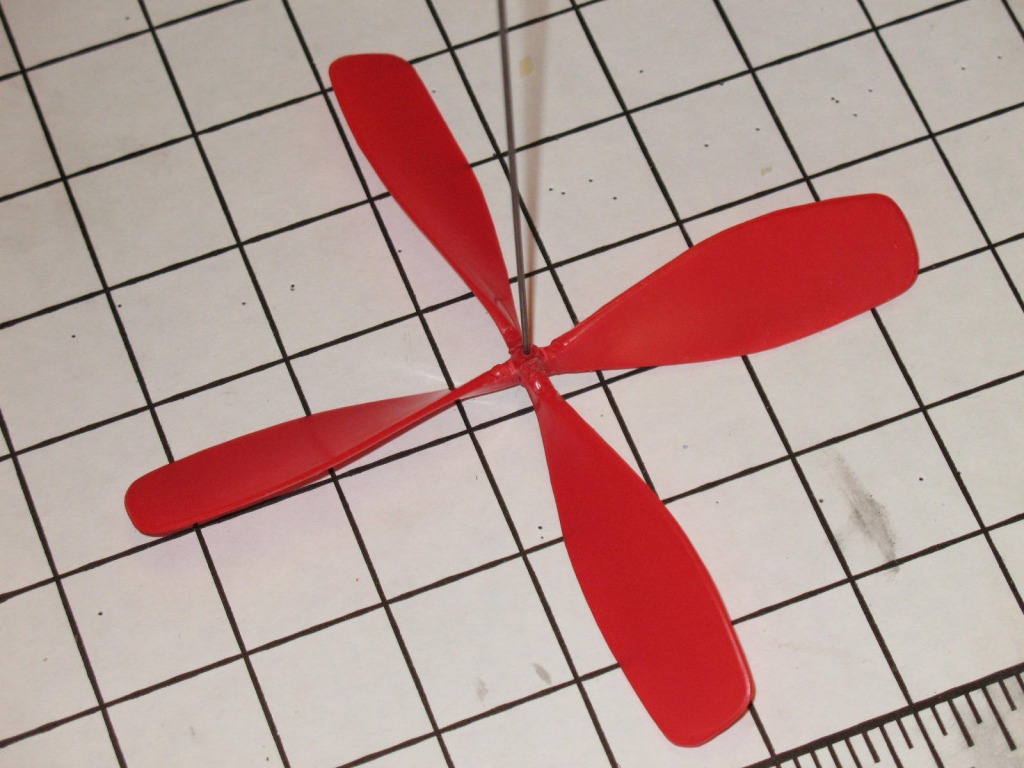

lennyz, Image # 2678 | 09 Apr 07 21:45 |
both blades on same plane |

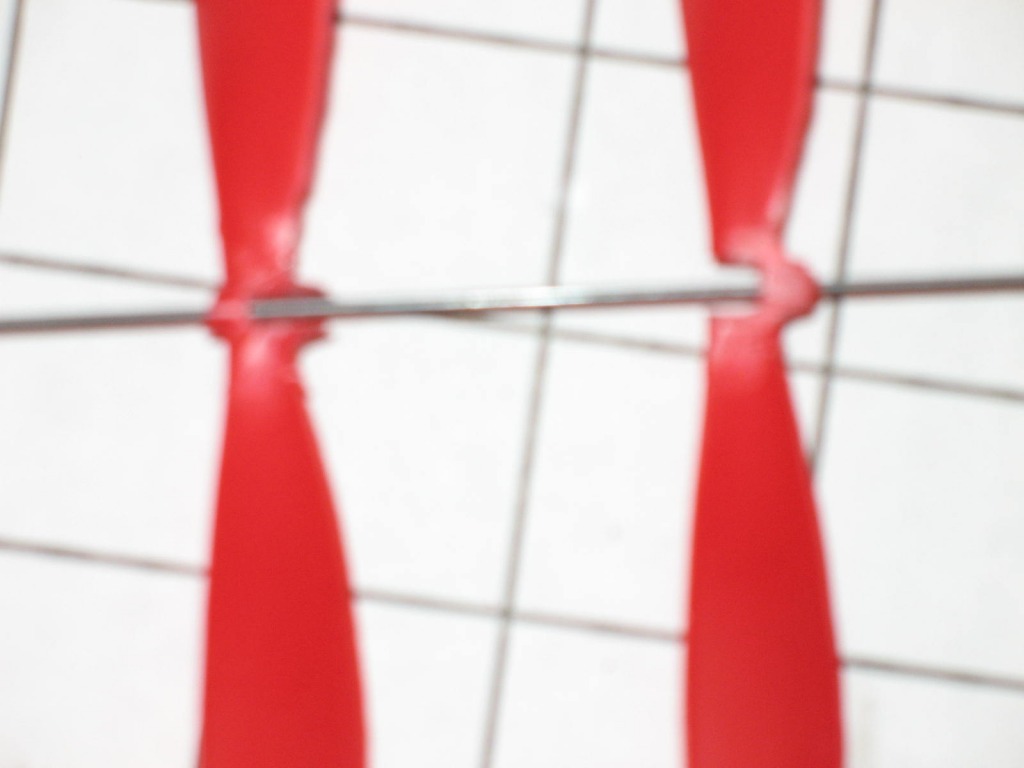

lennyz, Image # 2677 | 09 Apr 07 21:42 |
2 + 2 = 4 blades |
lennyz, Comment for image # 2624 | 02 Apr 07 23:36 |
winding & placing weight for flight trim-no guessing & then counter balancing |
lennyz, Image # 2624 | 02 Apr 07 23:34 |
aerosol cap can be trimmed to fit face of cowl-face of cowl can be trimmed away to allow room for inserting clay inside cowl for balancing-cap also has a nice center mark for drilling hole for prop bearing-it also slides out of sleeve on firewall for wind |
lennyz, Image # 2623 | 02 Apr 07 23:30 |
aerosol can cap has a nice flat surface to cover cowl front face |
lennyz, Image # 2622 | 02 Apr 07 23:28 |
piec on the right glues to firewall-piece under my fingers glues to it to make a sleeve for front plate- lower right to slide into |
lennyz, Image # 2621 | 02 Apr 07 23:26 |
nose block brainstorm-center tube--sleeve for two pieces to slide together-and front plate over plastic cowl from kit |
lennyz, Image # 2620 | 02 Apr 07 23:24 |
coverd view from the side |
