| biplane guy, Comment for image # 40291 | 08 Jun 18 10:55 |
| Your OCD is flaring up again Gary, are you taking your pills? |
| Don C, Comment for image # 40291 | 08 Jun 18 10:12 |
| I had the same concern with my Comet P-51. It looked to me like it was smoothed out a bit by the D model. When I found a picture of the camera mount it helped. |
| rayl, Comment for image # 40291 | 08 Jun 18 09:25 |
| Sky; You are right - the Guillows kit is all wrong around the radiator scoop. It is a slab-sided cross-section NOT the rounded shape that is presented. It doesn't take much to make it right, just a PITA when you first see the error. BTW< welcome back. |
| Skyediamonds1985, Image # 40294 | 08 Jun 18 08:43 |
I |

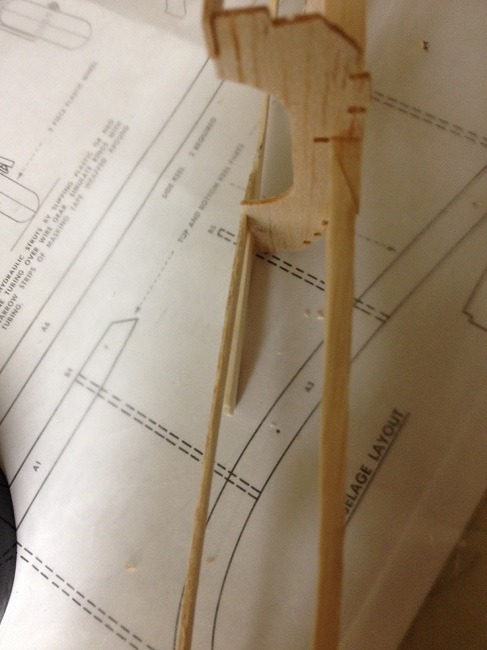

| Skyediamonds1985, Image # 40293 | 08 Jun 18 08:41 |
Not exactly a sharp image, but wanted to show that I trimmed away much of the longeron around the cockpit area. It's my intent, to try the "drop box" method of installing the cockpit. |

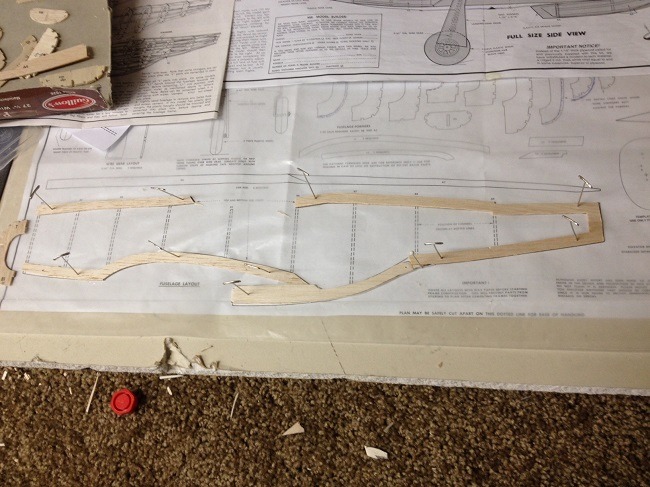

| Skyediamonds1985, Image # 40292 | 08 Jun 18 08:33 |
The build commences. Finally getting to cut and glue wood. It's been awhile..... |
| Skyediamonds1985, Image # 40291 | 08 Jun 18 08:32 |
Another "slight" difference was how the belly scoop faired into the lower fuselage. The Guillow's shows a rather sharp curve ending into the lower belly, whereas the 3-views shows a more modest blending. I'm going with the 3-views. Shouldn't be too hard to handle.... I hope |

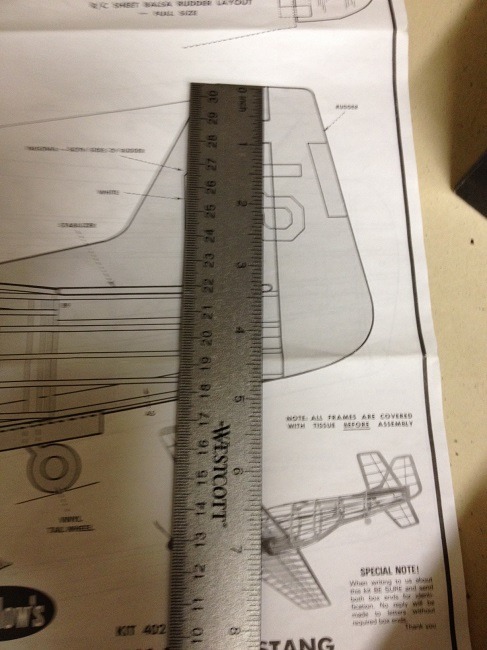

| Skyediamonds1985, Image # 40290 | 08 Jun 18 08:29 |
As seen from my previous post, the vertical tails are nearly exact in overall dimensions |

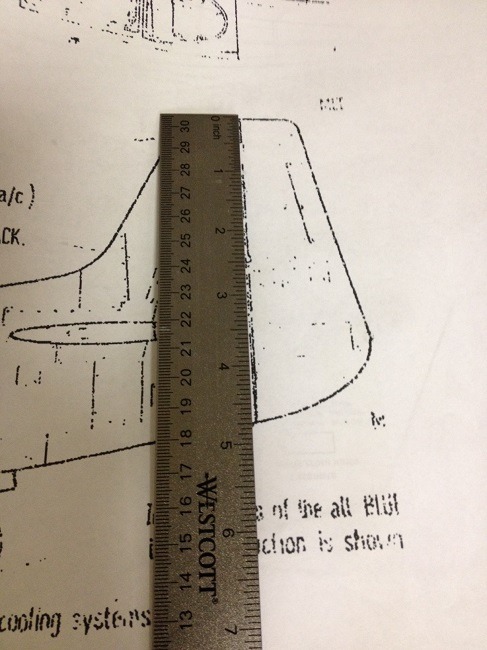

| Skyediamonds1985, Image # 40289 | 08 Jun 18 08:28 |
Surprisingly, the vertical tails match perfectly... |

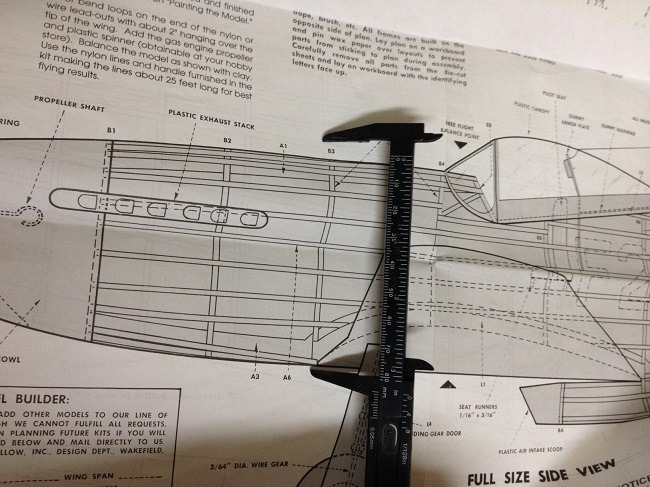

| Skyediamonds1985, Image # 40288 | 08 Jun 18 08:27 |
The differences become more apparent. Since it's my intentions to both infill and over-plank the fuselage, I decided not to enlarge most of the formers. Instead, the planking and the added thickness with compensate for me (or so the theory goes). |

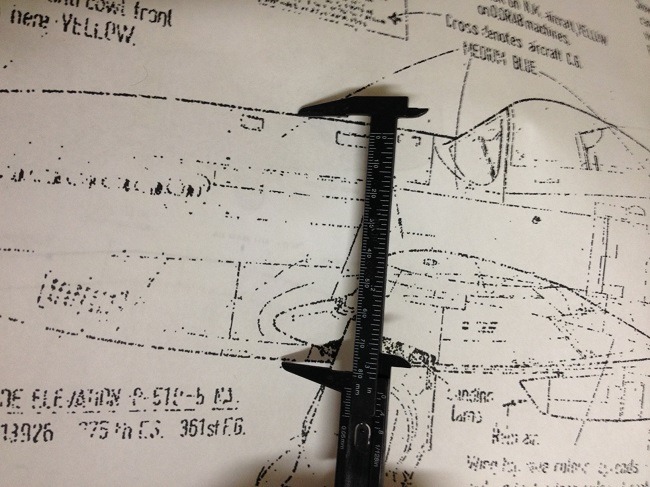

| Skyediamonds1985, Image # 40287 | 08 Jun 18 08:25 |
Delving a bit deeper revealed just s slight difference. As will be seen on the next post. |

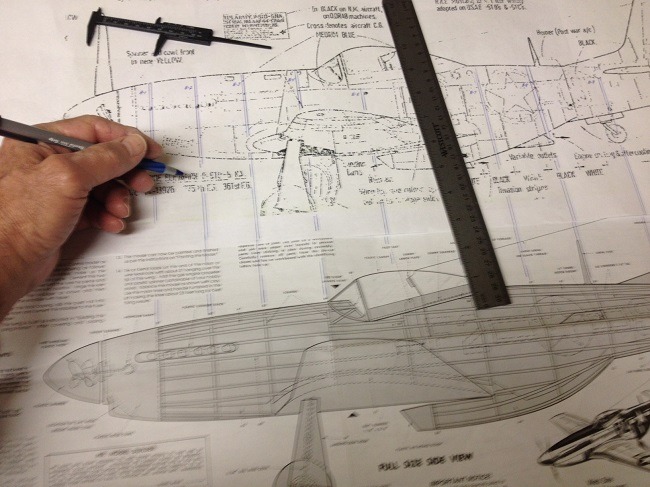

| Skyediamonds1985, Image # 40286 | 08 Jun 18 08:24 |
I enlarged a set of 3-views to scale and was surprised to find that Guillow's fuselage matches the 3-views fairly close |
