| Don C, Comment for image # 19347 | 15 Jan 23 21:20 |
| Nice work. |
| mlriley540, Comment for image # 19347 | 15 Jan 23 19:44 |
| Nice looking model, I had not seen this before. |
| FLYBOYZ, Comment for image # 19348 | 25 Sep 10 09:07 |
| WOW THATS A BEAUT! |
| Dale1416, Comment for image # 19347 | 24 Sep 10 19:00 |
| Yep, it was a fun build. I enjoyed improvising some of the details on this kit. I noticed you are currently building a North American Trainer. I just finished building a similar looking plane...It's the Dumas Fairchild PT19 Kit #224. It's peanut sized. I'll have the pictures posted shortly. |
| scigs30, Comment for image # 19347 | 24 Sep 10 18:36 |
| I may have to order this kit. I built the Comet Version, but that is also a different Corsair version as well. This would be a fun build. |
| Richardsk, Comment for image # 19347 | 24 Sep 10 18:18 |
| Seems a shame not to give it a tiny flight. Even if it's a bit heavy it should manage a powered glide into some nice tall grass. |
| Dale1416, Image # 19348 | 24 Sep 10 18:16 |
|
| Dale1416, Image # 19347 | 24 Sep 10 18:15 |

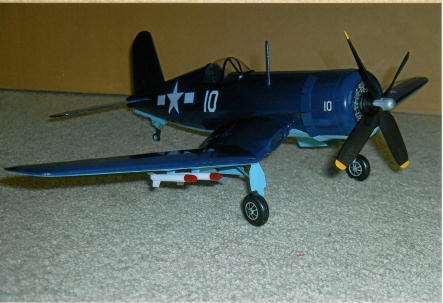

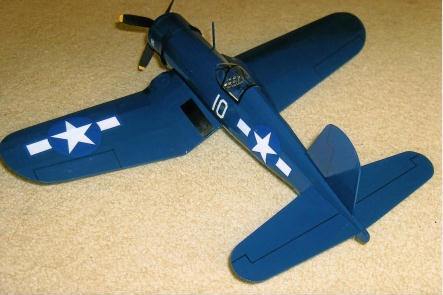

Finished F4U Corsair with a 17 1/2" wingspan, rubber powered, but I don't plan on flying it. |
| Dale1416, Image # 19346 | 24 Sep 10 18:14 |
|
| Dale1416, Image # 19345 | 24 Sep 10 18:13 |

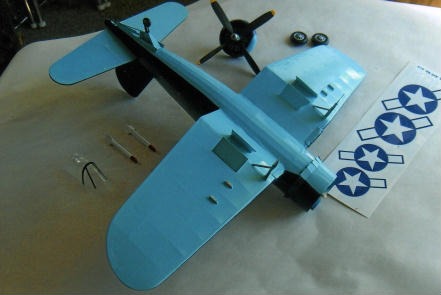

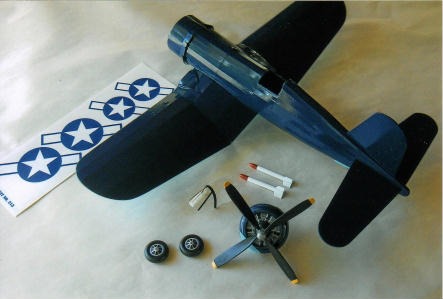

Painting completed; ready for the peel and stick decals. Since Dumas kits are lacking in scale details, I added engine outline, 4 blade prop, rockets, cockpit instruments, etc. |
| Dale1416, Image # 19344 | 24 Sep 10 18:12 |

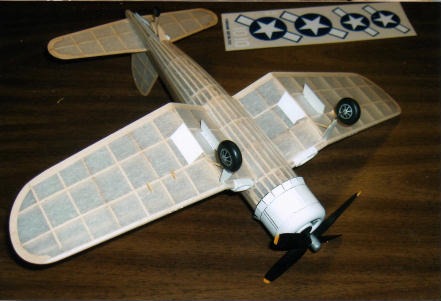

Additional stringers added; papering and assembly completed. |
| Dale1416, Image # 19343 | 24 Sep 10 18:11 |

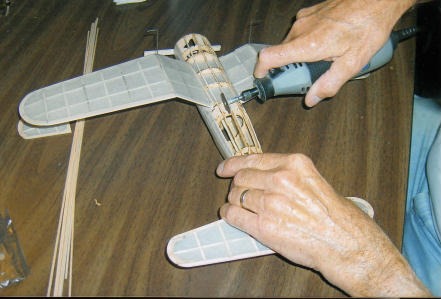

Cutting knotches for additional stringers using cut off wheel in Dremel tool. |
| Dale1416, Image # 19342 | 24 Sep 10 18:10 |

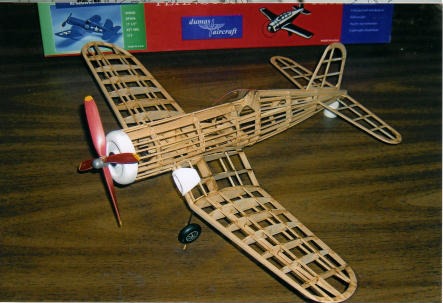

Just about ready to be papered. I plan on painting this one blue with a light blue bottom.Here it is with the propeller and rubber motor installed. I haven't glued anything yet. |
| Dale1416, Image # 19341 | 24 Sep 10 18:08 |

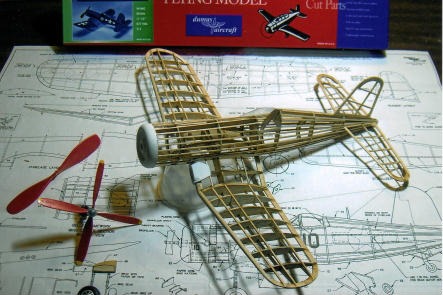

The Dumas kits are very lightweight flying models. So I added a few extra stringers and ribs. I took two of the 6" stock kit propellers, cut them down, crossed lapped to a hub made from the end of a ball point pen cap. I just need to paint it black and I'll have a scale looking prop for the Dumas F4U Corsair. |
| JohnG., Comment for image # 18778 | 04 Aug 10 07:13 |
| VERY NICE!!! |
