| simpleflyer, Comment for image # 20994 | 05 Feb 11 22:57 |
| This F-100 is at Camp Beauregard just north of Pineville Louisiana which is in the center of Louisiana. Pineville is about midway between I10 and I20.
If you read this, James, could you add 'scratch built F-105'. 'Comet Navion', and 'scratch built Fletcher FBT-2' to the airplane list. Thanks, |
| jgood, Comment for image # 20994 | 05 Feb 11 03:01 |
| Nice pic! I think I've been past this super sabre. Is it off I10? |
| simpleflyer, Image # 20996 | 04 Feb 11 21:53 |
The F-100 is part of the outdoor display associated with the Louisiana Maneuvers Museum located at Camp Beauregard in Pineville, Louisiana. The profile F-100 is just beneath the canopy of the real one. |
| simpleflyer, Image # 20994 | 04 Feb 11 21:49 |
Mid December found us visiting family in Louisiana. While there we took the opportunity to visit a F-100 on display and fly the profile F-100 at the site. |
| simpleflyer, Image # 20981 | 04 Feb 11 03:52 |
Test flight of the profile F-100. Dec 3, 2010 |
| simpleflyer, Image # 20980 | 04 Feb 11 03:50 |
Attachment of the swing control line. A line guide constructed of thin wire is needed at the wing tip. |
| simpleflyer, Image # 20979 | 04 Feb 11 03:45 |
Completed F-100 profile model. Wing mounting platform and capture strips are also used for the wing mounting. |
| simpleflyer, Image # 20978 | 04 Feb 11 03:40 |
Horizontal tail slides onto fuselage platform. |
| simpleflyer, Image # 20977 | 04 Feb 11 03:38 |
Mounting platform for tail glued to fuselage. Corresponding capture strips attached to horizontal tail. |
| simpleflyer, Image # 20976 | 04 Feb 11 03:36 |
Gluing doublers for tail mounting platform. The wing and horizontal tail will be removeable on the F-100. |
| simpleflyer, Image # 20975 | 04 Feb 11 03:34 |
Test fit of parts. |
| simpleflyer, Image # 20974 | 04 Feb 11 03:33 |
Assembly of the wing and horizontal tail and nose doublers. |
| simpleflyer, Image # 20973 | 04 Feb 11 03:31 |
Parts of the profile F-100. Interlocking glue joints at the wing and tail. |
| simpleflyer, Image # 20972 | 04 Feb 11 03:28 |

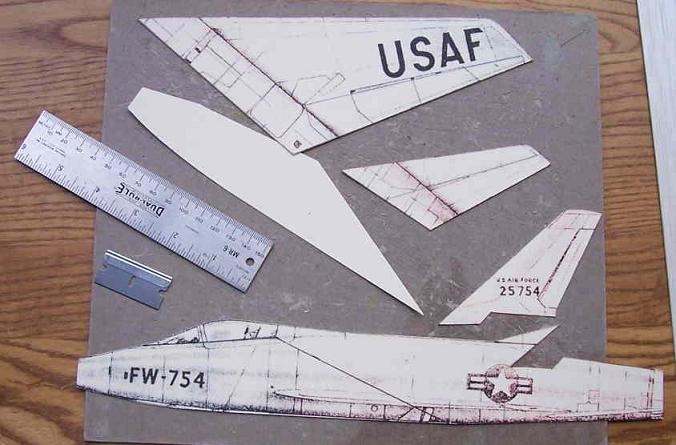

Patterns for cutting the sheet wood are cut out. |
| simpleflyer, Image # 20971 | 04 Feb 11 03:26 |

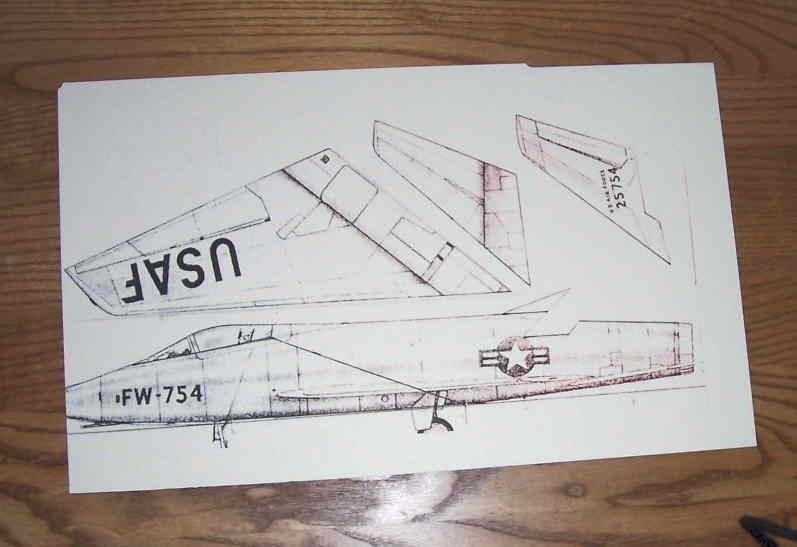

Components are copied to a 8 1/2 x 14 sheet of cardstock. |
| simpleflyer, Image # 20970 | 04 Feb 11 03:22 |

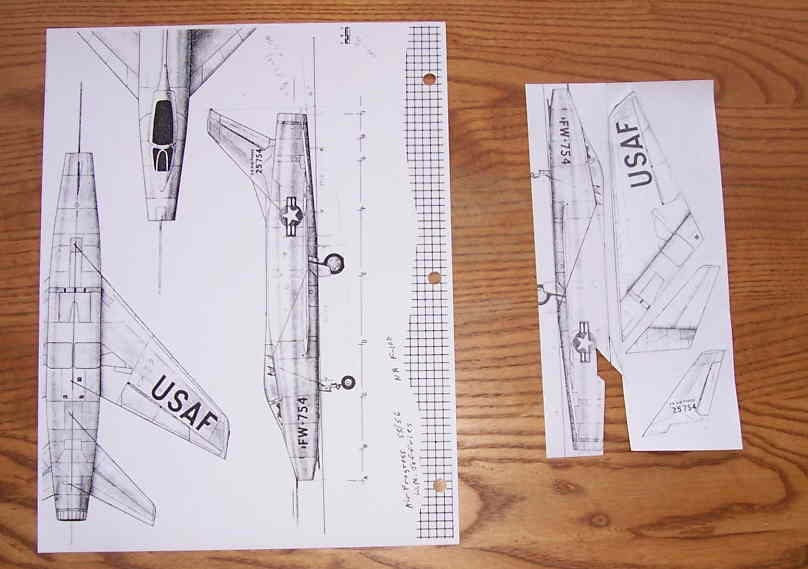

A sheetwood profile is simpler and quicker. First a copy a Walter Jefferies 4 view of the F-100 and reformat the primary components of the airplane. |
| simpleflyer, Image # 20969 | 04 Feb 11 03:19 |

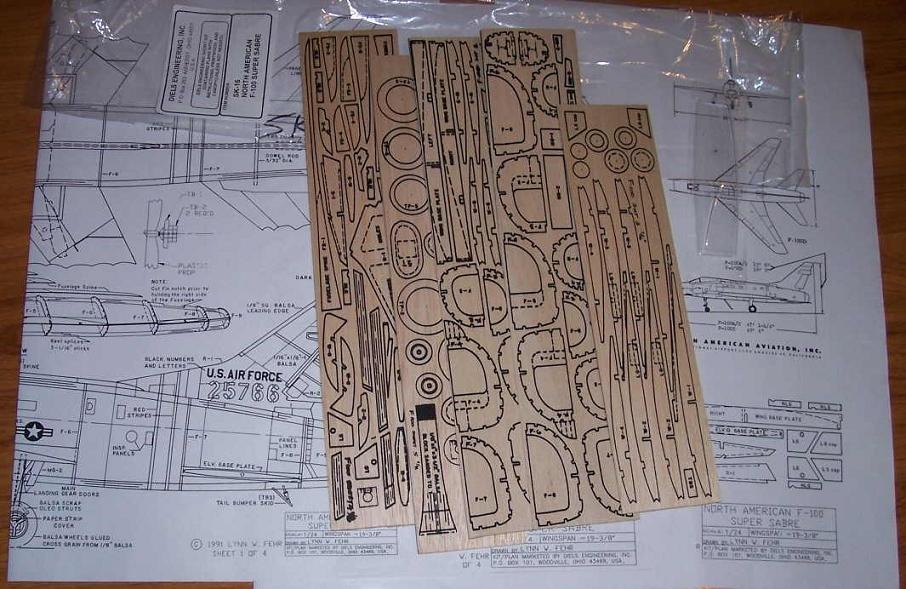

The Diels F-100 kit SK-16. Nice printwood and plans. Kinda complex for me at this time, perhaps a future build. |
