| hjlittman, Comment for image # 31425 | 23 May 14 18:22 |
| Here is a link to a video of a short flight of this model.
https://www.youtube.com/watch?v=P5kIOW5ReTY I don't wind for maximum flights in this particular room because of the giant ventilation fan near the ceiling. |
| hjlittman, Image # 31425 | 17 Apr 14 21:00 |
Other project is occupying more of my time. |
| hjlittman, Image # 31424 | 17 Apr 14 20:58 |
Coming along slowly. Five hours into it. Have almost all crossmembers and formers in the fuselage and the wing and tail surfaces are sanded. |
| hjlittman, Image # 31317 | 26 Mar 14 17:39 |

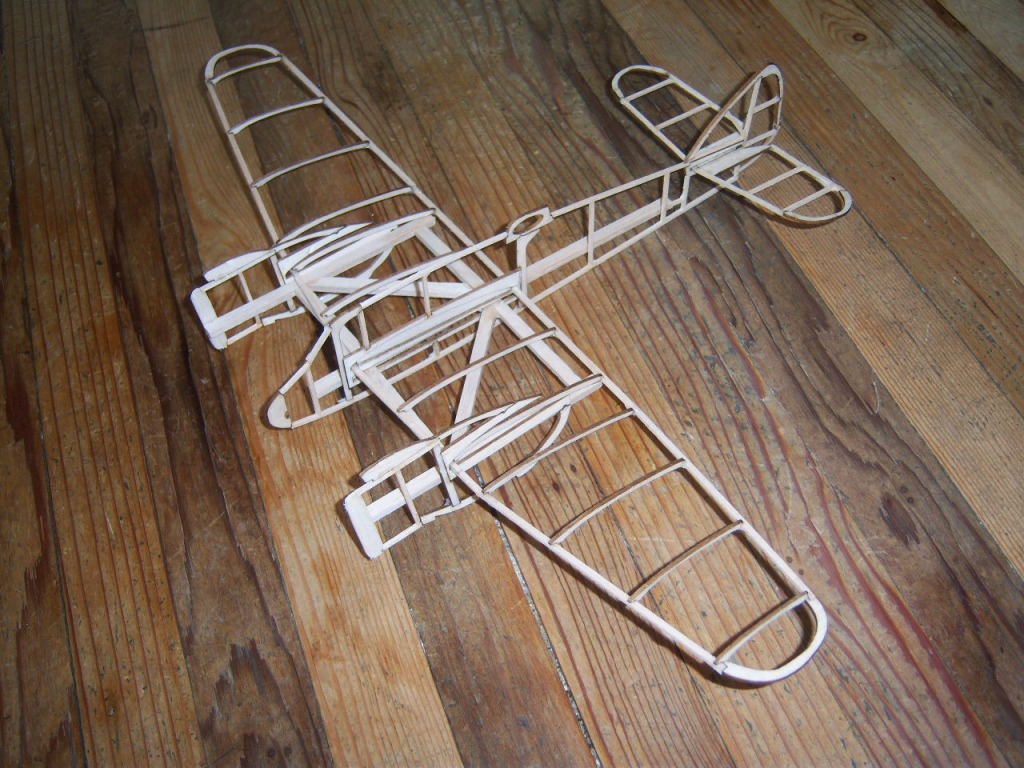

One of the reasons that I have only been putting the ocassional hour a day into my Arrow build is that I am getting my next No-Cal kit ready for production. |
| hjlittman, Image # 31301 | 25 Mar 14 11:56 |
Begins to look like a plane. |
| hjlittman, Image # 31299 | 25 Mar 14 11:55 |
Working on removable nose plate for better access and thrust line adjustment. |
| hjlittman, Image # 31298 | 25 Mar 14 11:54 |
Guillow's designs have used alignment formers in box fuselages since the 1930s. I think it's a great idea and use them in my own box fuselage designs. |
| hjlittman, Image # 31297 | 25 Mar 14 11:53 |
Don't realize how many pins you use until you line them up. These pins held down one side of fuselage. |
| hjlittman, Image # 31296 | 25 Mar 14 11:52 |
Moved motor peg forward one bay because the motor peg area is rather constricted if built per plan. Others have made fuselage wider in rear. |
| hjlittman, Image # 31295 | 25 Mar 14 11:50 |
Starting on fuselage. |
| hjlittman, Image # 31294 | 25 Mar 14 11:49 |
The way I actually did it. |
| hjlittman, Image # 31293 | 25 Mar 14 11:48 |
Strange instructions for dihedral |
| David Duckett, Comment for image # 31202 | 18 Mar 14 13:25 |
| Have to agree with that! |
| hjlittman, Comment for image # 31202 | 18 Mar 14 13:21 |
| My mom was the, "Wait until your father gets home!" type, but later experience tells me that if you meet a beautiful woman, and her opening line is "Have you been a bad boy?", RUN! ;) |
| David Duckett, Comment for image # 31202 | 18 Mar 14 10:53 |
| I meant had your Mom punished you. |
| hjlittman, Comment for image # 31202 | 18 Mar 14 10:14 |
| Really, David? You're not my type. Seriously, I've had to prioritize my time. With producing my kits and new designs, and all the social requirements of staying married it just my way of scheduling it in. Besides, with this one I will know exactly how long it took to build it. |
| David Duckett, Comment for image # 31202 | 17 Mar 14 17:51 |
| Have you been a bad boy? |
| hjlittman, Image # 31204 | 17 Mar 14 16:05 |
At the end of the first hour I had the tail feathers and most of the wing rough framed. |
| hjlittman, Image # 31203 | 17 Mar 14 16:03 |

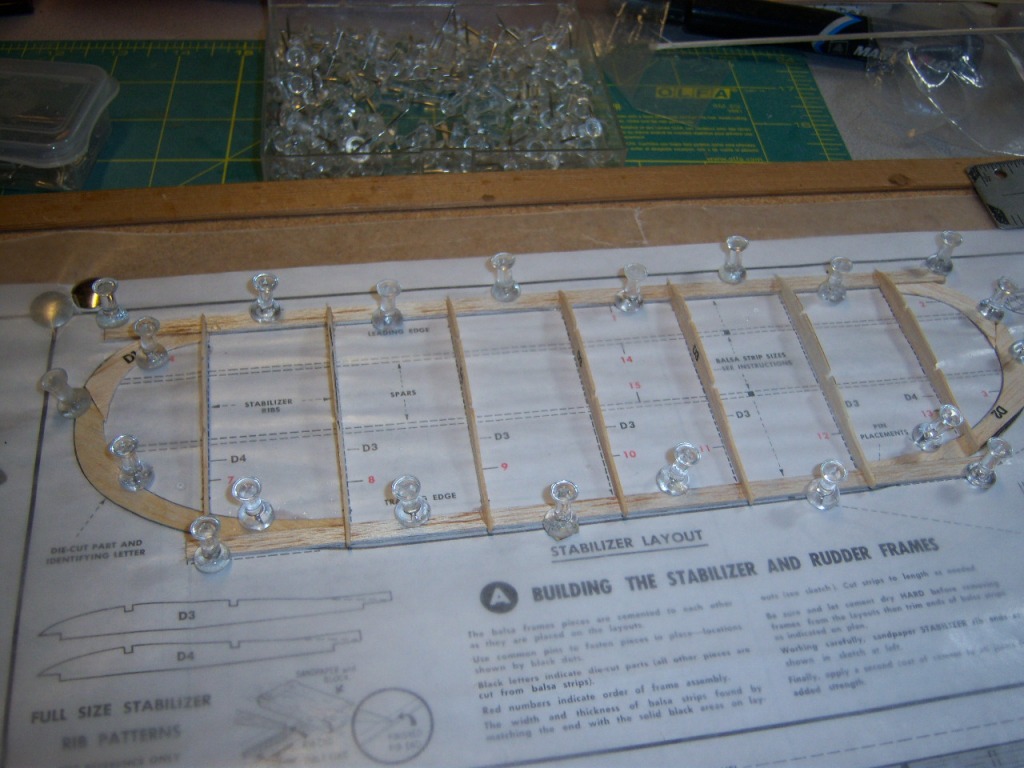

Starting with the tail feathers. I don't like to put pins through the parts, if I can avoid it, so I use some rather long push pins I found at Office Depot, They are not as long as the Czech pins made just for model building, but they work rather well. |
| hjlittman, Image # 31202 | 17 Mar 14 16:01 |
I'm keeping a time on the work bench because I only have an hour a day to work on it. |
